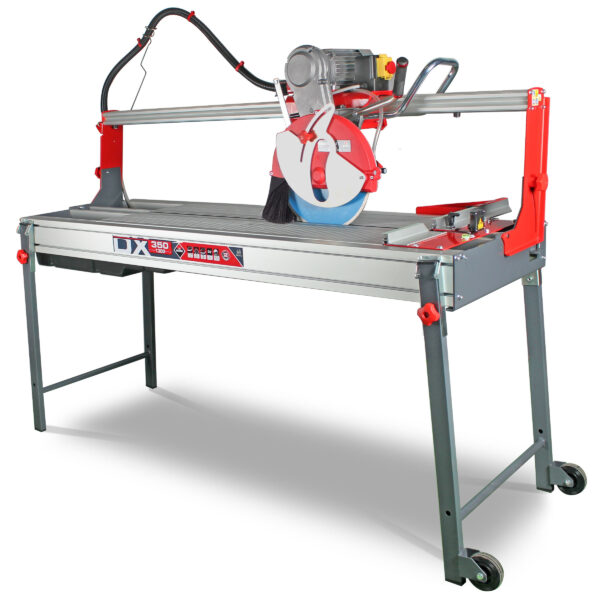

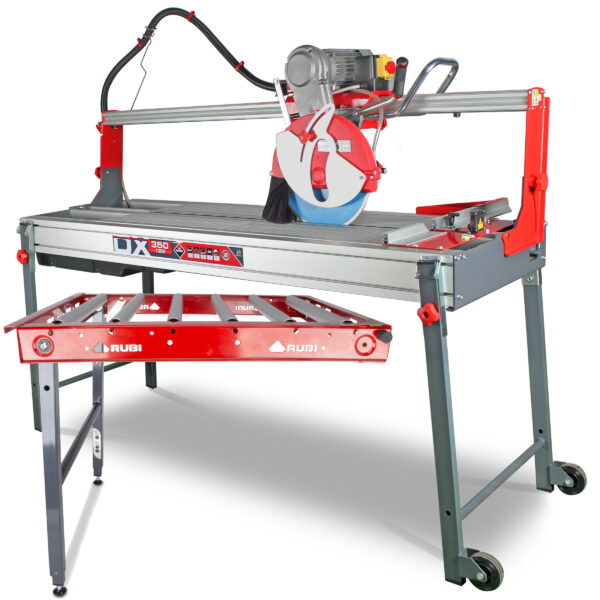

Electric Tile Cutter (Overhead Rail) DX-350-N 1300 / 110v

From: £7.50

The DX-350-N 1300 is professional electric tile cutter from renowned manufacturer, Rubi. This model has a maximum cutting length of 1325mm (1485mm with plunge cut effect) and a maximum cutting depth of 105mm (220mm with 2 passes). With the right blade selection it can be used on all types of tiles and building materials, including ceramic, porcelain, marble, granite, bricks, blocks, etc.

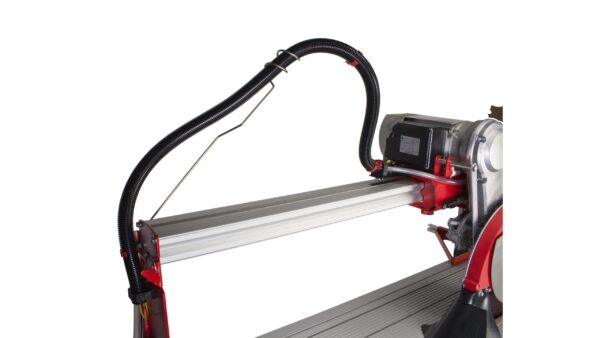

The cutting head is mounted on an overhead rail system, which is perfect for cutting wall and floor tiles because it gives a very accurate, straight cut and greatly reduces the risk of chipped tiles.

We stock a selection of blades for most materials, for hire or sale.

Hire PeriodTile CutterRoller Extension TableBoth
4 Hours£48.00£7.50£55.50
8 Hours£68.00£10.65£78.65
1 Day£88.00£13.75£101.75
2 Days£120.00£18.75£138.75
3 Days£144.00£22.50£166.50
Week£160.00£25.00£185.00
Weekend£104.00£16.25£120.25

All rates exclude VAT

Additional charges: Diamond disc wear is charged per 0.5mm

Clear
  • *Hire Items

    *Hire Period

    Reset options

    Please provide the following specifications of the product to be cut. The diamond blade has to be matched to the material that is being cut. Incorrect blade selection can result in excess wear or damage to a blade.

    Having this information beforehand, will enable us to check we have stock of the correct blade, and fit it to the machine before the hire starts.

    *Material

    *Type

    *Length (mm)

    *Width (mm)

    *Thickness (mm)

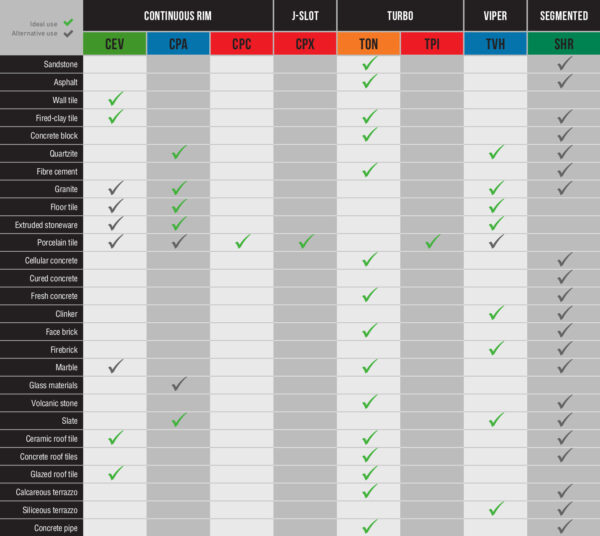

    Diamond Blade Guide

    Diamond Blade Guide For Rubi Wet Cutters

  • *Hire From

Product Description

The DX-350 N 1300 is an electric cutter with a mobile head, equipped with a plunge effect to give professionals great versatility in cuts.

It is ideal for cutting all types of ceramic tile and building materials such as; marble, granite, bricks, facing, refractories, etc.

The DX-350 N 1300 has a motor assembly mounted on sliding bearings, offering the maximum precision and reliability that helps to obtain perfect finishes.

The aluminium structure of the DX-350 N 1300 by RUBI is lighter and offers high resistance to normal working conditions in construction.

Thanks to the protector that includes the cutting head, the DX-350 N 1300 electric cutter can hold blades of all types; continuous rim, turbo, segmented, etc.

The DX-350 N 1300 can work with both 300 and 350 mm diameter blades, which means that the professional can pick and choose the most convenient and viable solution for them.

The system of retractable legs offers an extra protection during transport and storage of the electric cutter and mitre saw, besides its built-in wheels facilitate handling and movement over short distances at the same site.

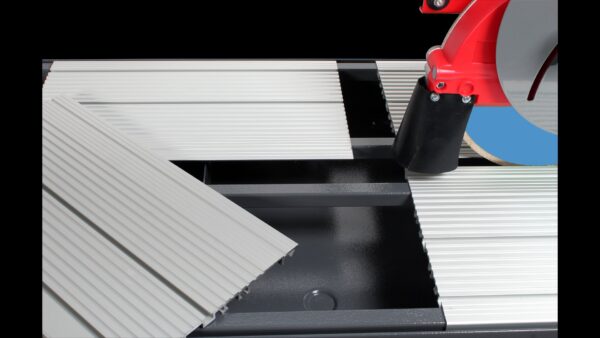

The maintenance of the DX-350 N 1300 electric cutter is minimal thanks to the aluminium chassis also, the daily cleaning is very practical and easy due to their removable tables and trays.

The DX-350 N 1300 includes a 2 mW laser tracer (Class 2) that facilitates cutting visibility and positioning, as well as a spirit level system for installing the electric cutter at the work site.

Product highlights

  • Motor assembly mounted on sliding bearings for maximum precision and reliability. Perfect finishes.
  • Aluminium structure. Lighter cutter with maximum resistance to working conditions.
  • High performance plunge effect. Maximum cutting height.
  • Equipped with protective head for safety in the use of segmented blades.
  • Equipped with ZERO DUST system. Tested and certified by TNO.
  • Aluminium structure. Lighter cutter with maximum resistance to working conditions.

Materials

For all types of ceramic tiles and building materials like; Marble, Granite, Facade bricks, Fireproof bricks, etc…

Features

  • Equipped with protective head for safety in the use of segmented blades.
  • With thermal and overload security switches.

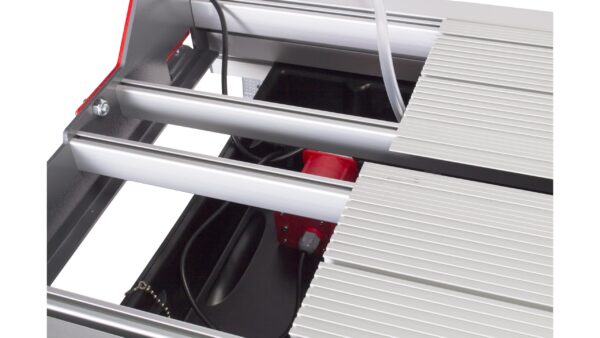

  • Blade cooling by water pump with regulating tap
  • Diamond blade Ø 350 mm.
  • Allows the use of a Ø 12” (300 mm.) blade.
  • Adjustable mobile head with plunge effect capability.
  • Retractile legs with “shield” function and wheels for transportation.
  • Motor on top and belt transmission.

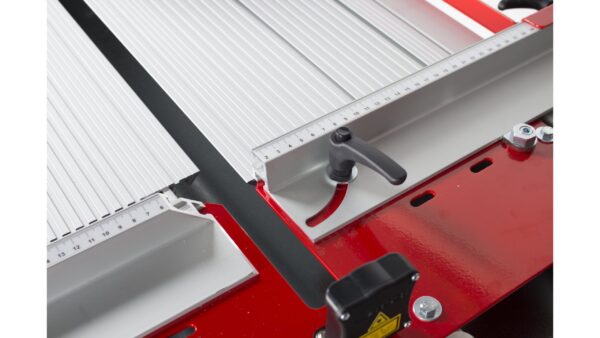

  • With lateral stop for repetitive cuts.
  • Aluminium working surface removable for easy cleaning.
  • Removable water tank system.
  • 2mW laser plotter. (Class 2)

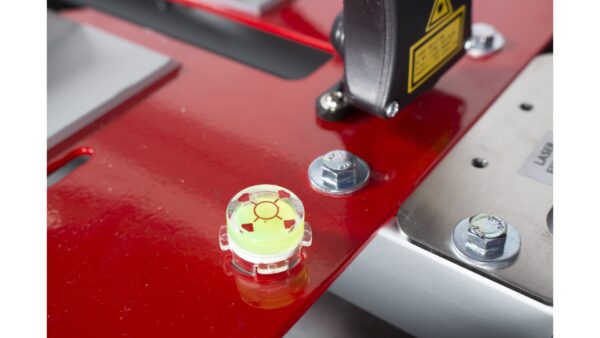

  • Circular level for easy field installation.
  • It comes with the new ZERO DUST system mounted, as well as a second set of standard splash skirt.

Specifications

ModelRubi DX-350-N 1300
Cutting length (with plunge cut effect)1325 mm (1485 mm)
Maximum cutting thickness – 1 stroke or 2 strokes105 mm / 220 mm
Mitre thickness cut65 mm
Power supply110V
Watts2200 W
Revolutions per minute2800
Diamond blade outside diameter300 or 350 mm
Diamond blade bore diameter25,4 mm
Length, Width, Height (legs down, in use)2000 x 730 x 1430 mm
Length, Width, Height (legs up, for transporting)2000 x 730 x 940 mm
Weight97.5 kg

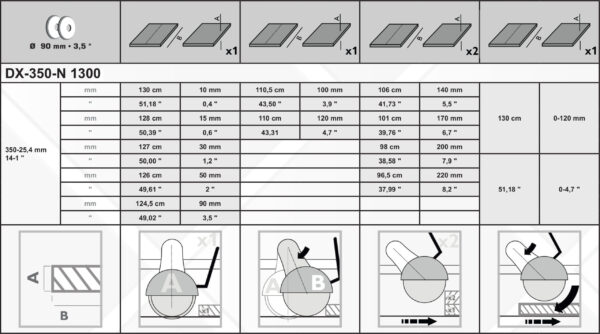

DX-350-N 1300 Cutting Specs

Rubi DX-350-N – Manufacturer’s Product Overview

Rubi Roller Table Extension – Manufacturer’s Product Overview

Rubi TVH Diamond Blade Demonstration

Rubi CPA Diamond Blade Demonstration

Downloads

Manufacturer’s – Safety & Operating Guide – Rubi DX-350-N 1300 Electric Tile Cutter
