Rubi TX-N – Manual Tile Cutter – Manufacturer’s Demonstration
The Rubi TX-1200-N is a professional tile cutter, ideal for cutting ceramic, porcelain and extruded tiles up to 125cm long. It has a 1000kg breaking power for cutting the hardest materials. A central pivot swivel square for quick and accurate measurement of angular cuts. Various scoring wheels for every material will maximize performance and cutting quality. Double set of guides for greater visibility and flexion resistance. For repetitive cuts the lateral stop will save time.
All rates exclude VAT

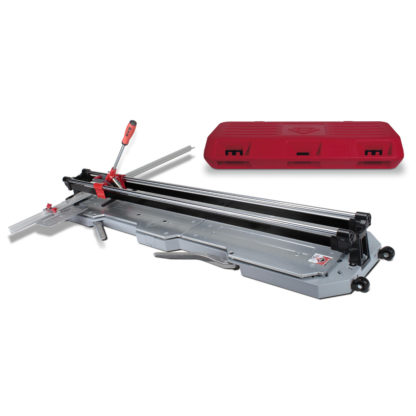

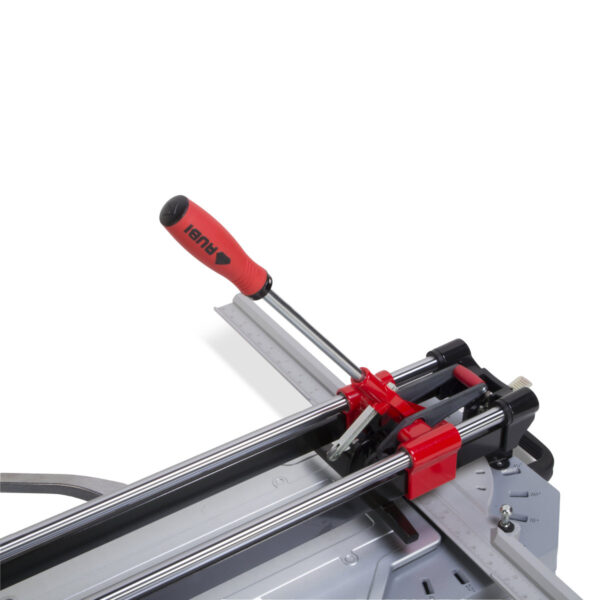

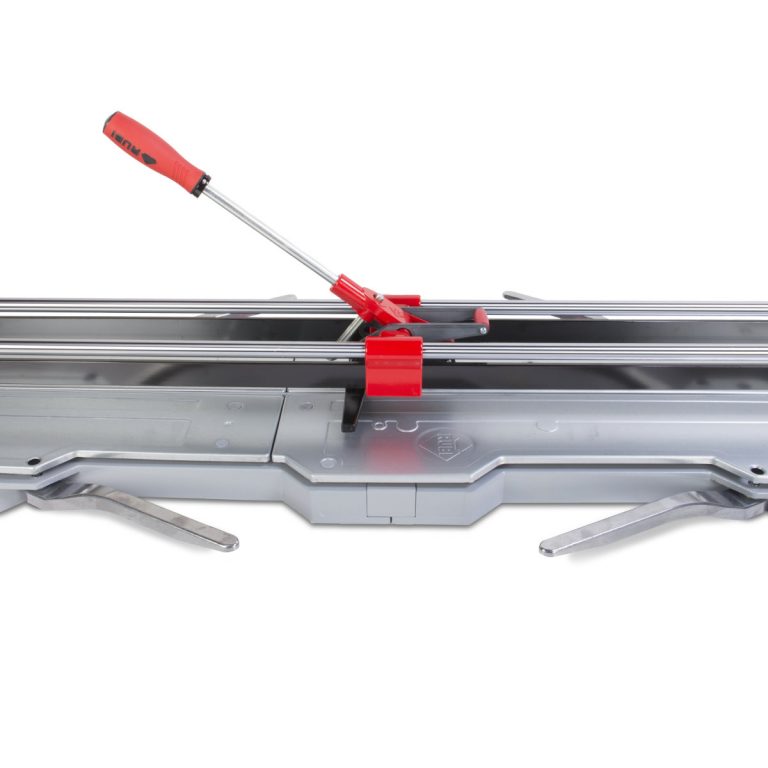

The RUBI TX-1200-N tile cutter is ideal for intensive cutting of ceramic tiles, especially for cutting porcelain (BIa type) and extruded (AI type) tiles. TX-1200-N tile cutter is robust and precise, and particularly suitable for angular and diagonal cuts. It include a practical, high performance multipoint breaker with up to 1000kg of maximum breaking pressure for cutting up to 20mm of tile thickness.

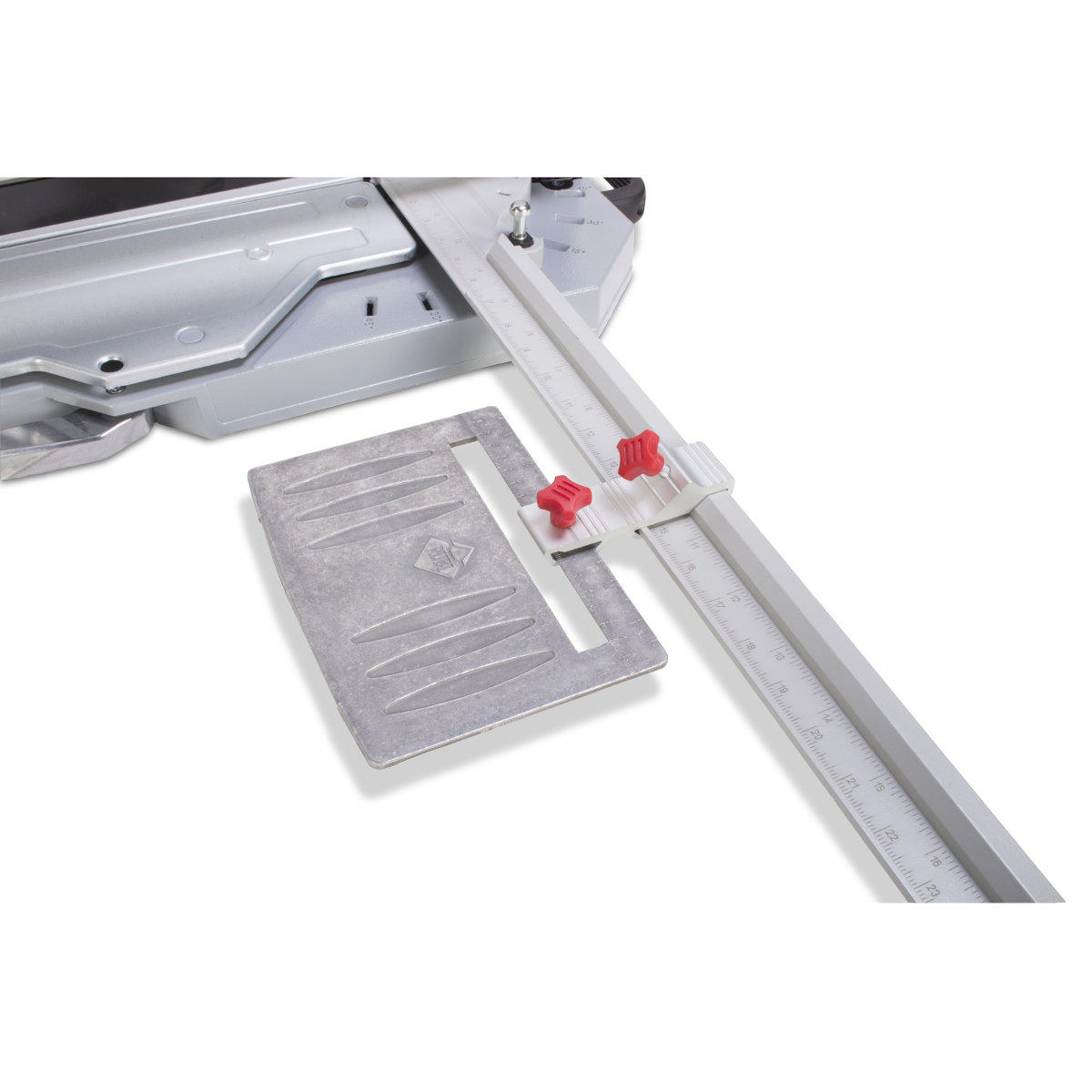

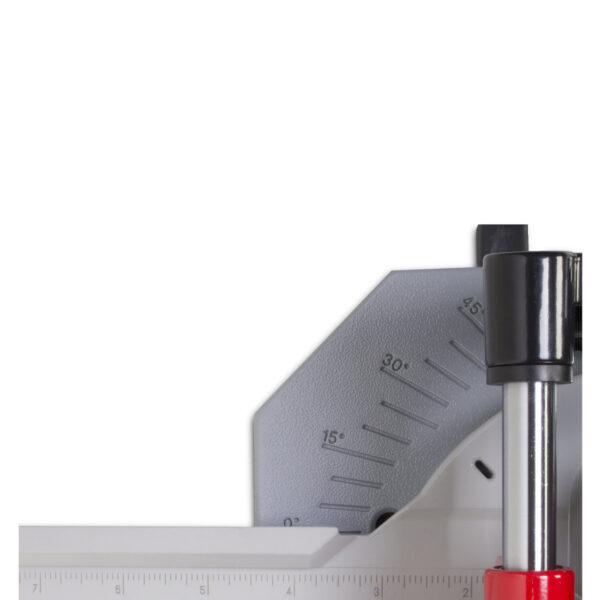

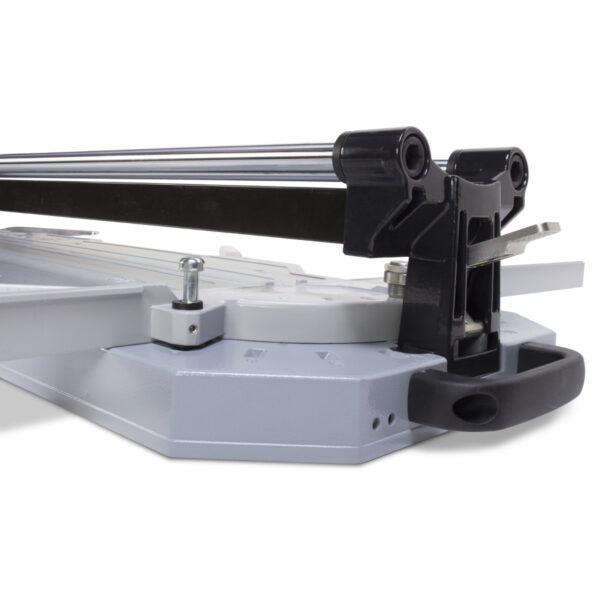

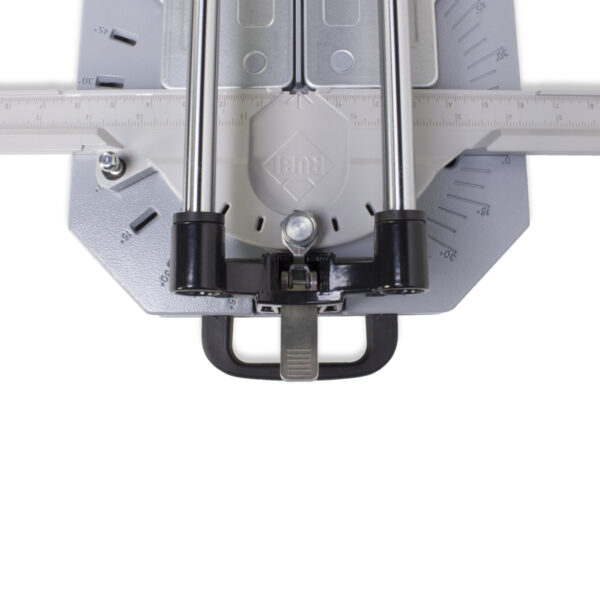

The biomaterial handles on the TX-1200-N tile cutter, with an impeccable ergonomic design, give the user greater comfort while working. It include an angular measuring system through a central pivot swivel square for quick and precise measurement of any angular cuts, and a lateral stop that is ideal for measuring and performing repetitive cuts. RUBI tile cutters have a high strength two-layer aluminum base with a shock absorption effect, and lateral supports for large tiles.

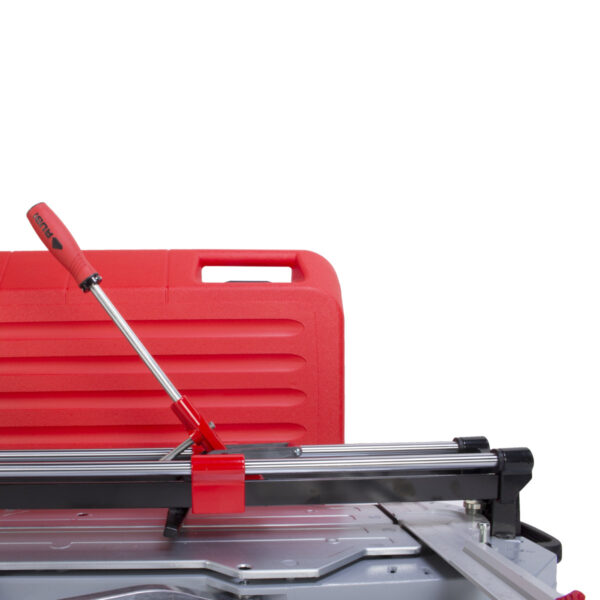

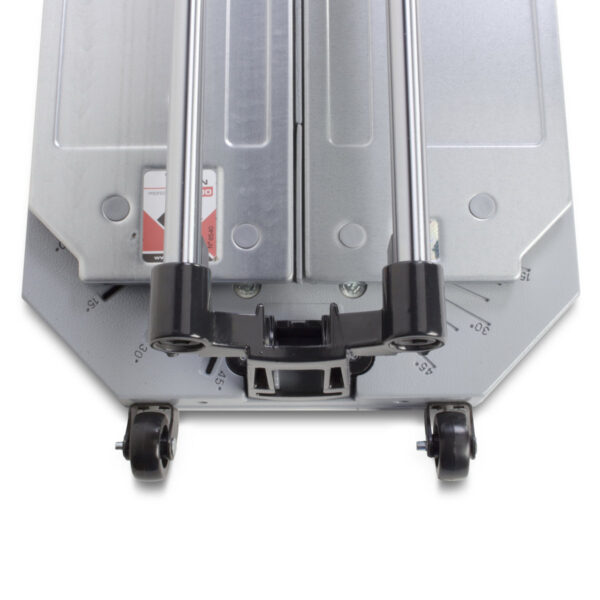

The TX-1200-N tile cutter is equipped with two chromed steel guides, rectified and calibrated, with anti-corrosion treatment and two steel profiles which absorb bending and allow the breaker to work with maximum power. This double guide system offers the user better and greater visibility of the scoring line, thus obtaining high precision in every cut. The possibility of using the full range of RUBI interchangeable scoring wheels, from Ø 5/16-7/8 in., allows you to adapt the tile cutter to each ceramic material, and to obtain maximum performance and cutting quality. The cutter include two scoring wheels as standard: both for glazed stoneware and for harder materials like porcelain or extruded tiles.

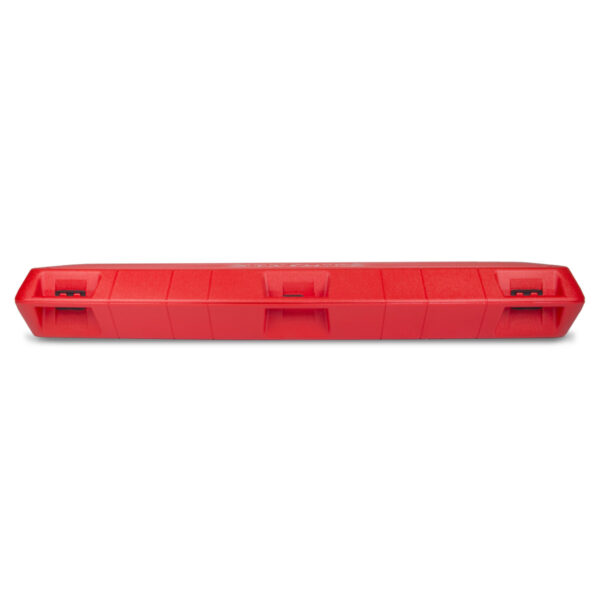

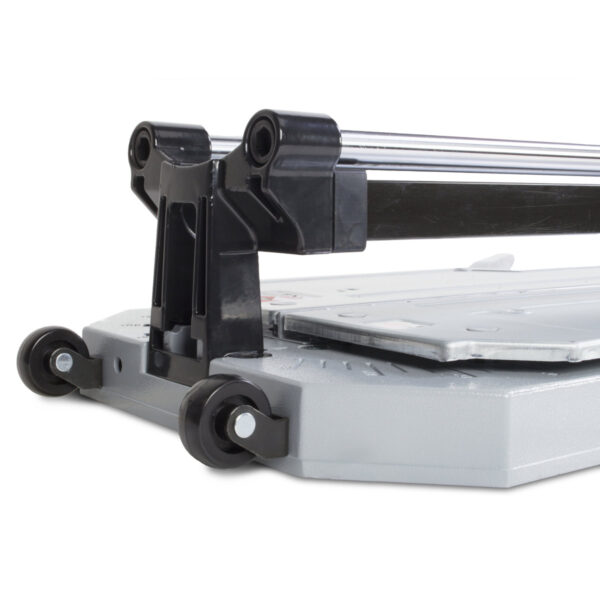

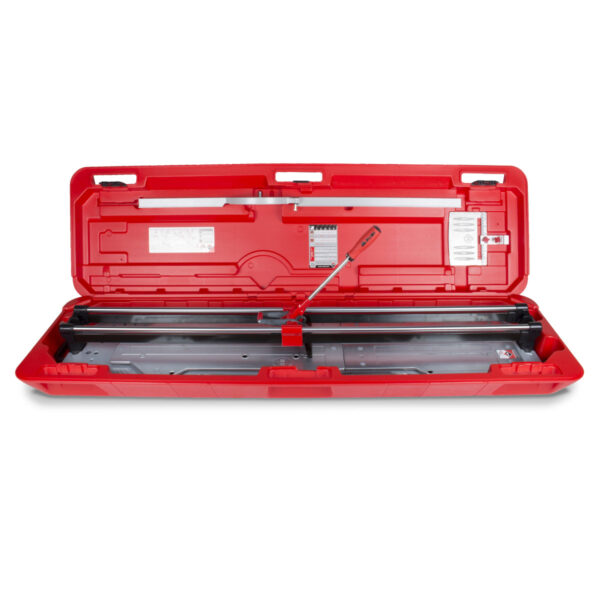

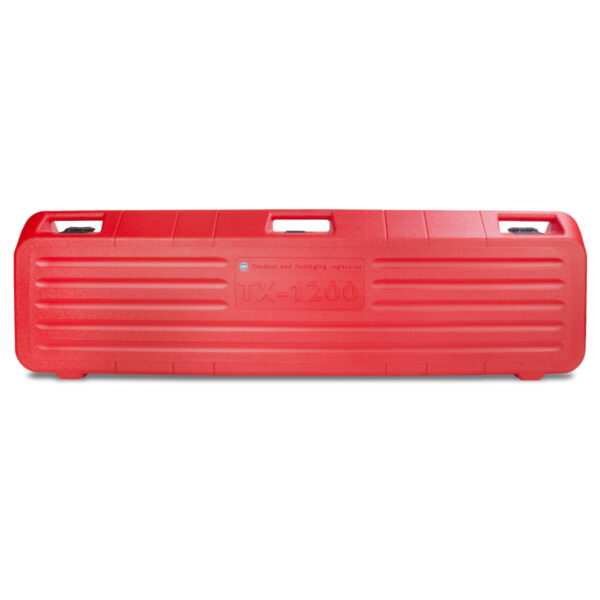

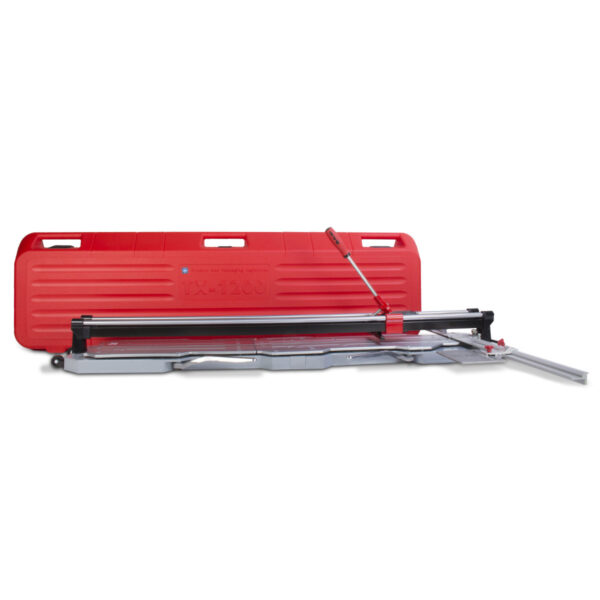

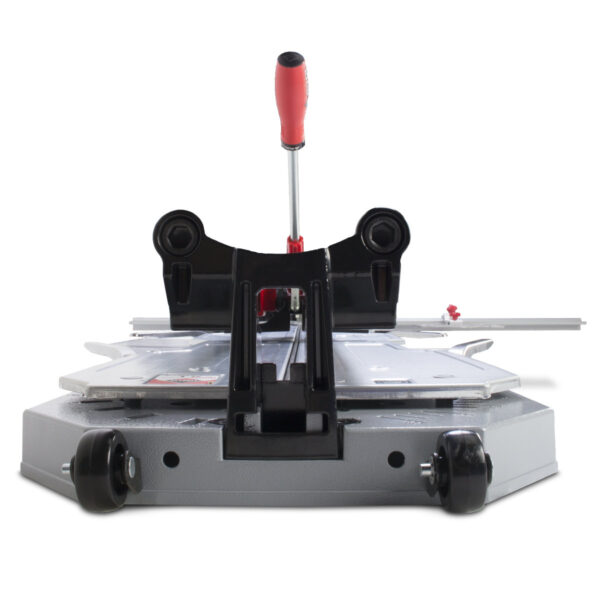

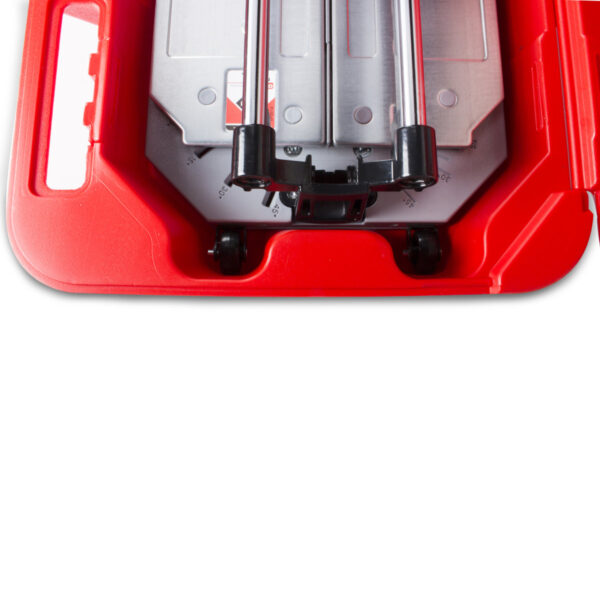

The TX-1200-N model also includes a handy set of wheels and handle for easy transport outside the case.
* There are some ceramic materials, with thicknesses greater than 19/32in., which due to their physical characteristics, internal tensions or finishing, may be difficult to cut manually. It is recommendable to make some sample cuts to determine the compatibility of the product.
|Straight Cutting Length||125 cm|
|Diagonal Cutting Length||85 x 85 cm|
|Cutting Height||6-20 mm|
|Separator Power||1000 kg|
